Trimdek®: a Subtle but Bold Roofing & Wall Cladding Solution

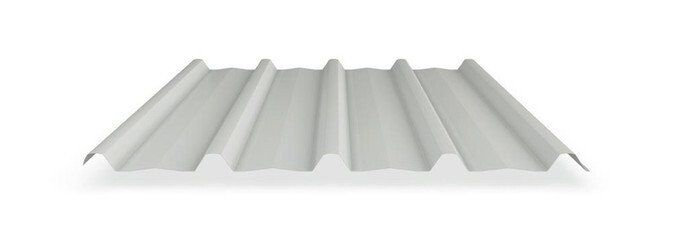

LYSAGHT Trimdek®
Trimdek® is a versatile roofing and wall cladding product that features bold, trapezoidal ribs and subtle fluting in the pans. It is ideal for commercial, industrial, and residential buildings. The long-spanning cladding permits wide support spacing and can be used with the TRIM-KLIP™ end and expansion joint system.
Trimdek® roofing and walling is an excellent choice for a variety of applications. It is durable, low maintenance and provides good thermal and acoustic insulation. The Trimdek® roofing system has been independently tested to meet or exceed the requirements of the Building Code of Australia (BCA).

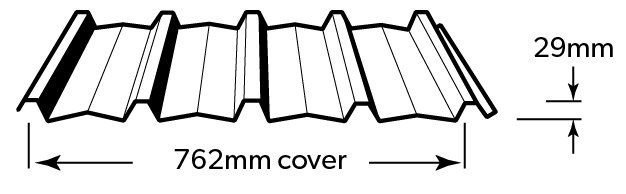

Specifications
BMT: 0.42 – 0.48 mm
Cover Width: 762
Weight: 4.35 – 4.93 Kg
Minimum Pitch: 2 Degrees (1 in 30)
Roof Span
Int Span: 1900 – 2600 mm
End Span: 1300 – 1850 mm
Wall Span
Int Span: 3000 mm
End Span: 3000 mm
Rib Height: 29 mm
Accessories
- Infill Strip Tops
- Infill Strip Bottoms
- Prestites – Preformed Bitumen Sealing Strip
- Polycarbonate Sheeting to Suit Trimdek (5Rib)
- Fibreglass Sheeting to Suit Trimdek (5Rib)
- Monoclad Monolap – Roof Joining System
Colour Range
- XRW Colorbond Range
- ULTRA Colorbond Range
- Metallic Colorbond Range
- Zincalume
- Galvanised
Our Material Range
Unpainted Steel Options
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
