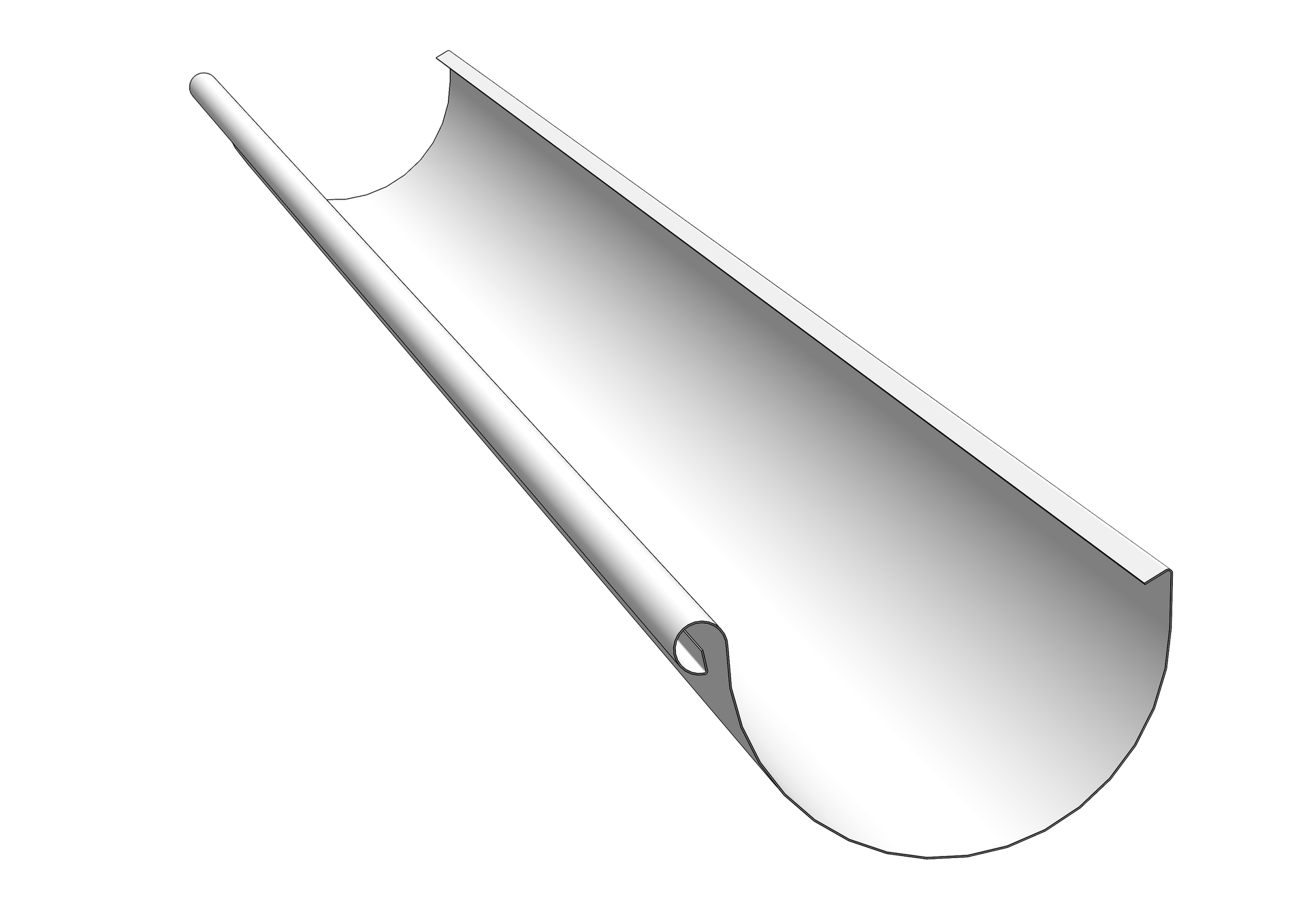

European Bead Half Round Gutter Profile
European Bead Half Round Gutters
APPLICATIONS
- Residential
- Traditional
- Heritage
- Contemporary
- Commercial and industrial
- Gutters larger than 225mm in diameter hydraulic design should be considered to determine half round gutter size and number of downpipes and diameter
ADVANTAGES
- European bead promotes
- strength and durabilty
- easy cleaning
- Excellent water flow capacity
- Curved base provides efficient self-cleaning and debris build-up
- Wide range of sizes and finishes
- Gutters are supplied plain (unslotted) with a lower bead over flow to the front of gutter)
- Supported by comprehensive accessories systems
- High quality Zambelli rainwater goods
Specifications
SIZES
80mm | 100mm | 125mm | 150mm
200mm | 250mm | 300mm | 350mm
400mm | 450mm
INSTALLATION
Gutter fall 1:500
Lengths: min 1500mm - max 6000mm
Gutter bracket spacings: 1000mm centres
MATERIAL THICKNESS (BMT)
- Copper 0.55mm
- Galvanised 0.55mm
- Z275 Galvanised (standard galvanised)
- Z600 Galvanised (also known as Heritage galvanised - max 4m lengths)
- Stainless Steel 0.55mm
- 304 2b
- 316 2b
- 316 #4 (brushed)
- Zincalume 0.70mm
- Zinc 0.70mm
- Zinc Mill Finish
- VM Zinc QUARTZ
- elZinc SLATE
ACCESSORIES
- Brackets
- A1 Gutter bracket (Fascia)
- A2 Gutter bracket (Rafter)
- A4 Gutter bracket (Heavy Duty)
- A5 Gutter bracket (Heavy Duty Rafter)
- Click-On Outlets
- Nozzles to suit Half Round gutters
- Corners
- Mitred corners
- Pressed Corners (to suit European bead)
- Stop Ends
- Seaming
- Push On
- Baskets
- Gutter Sieve baskets
- Wire Cowl baskets

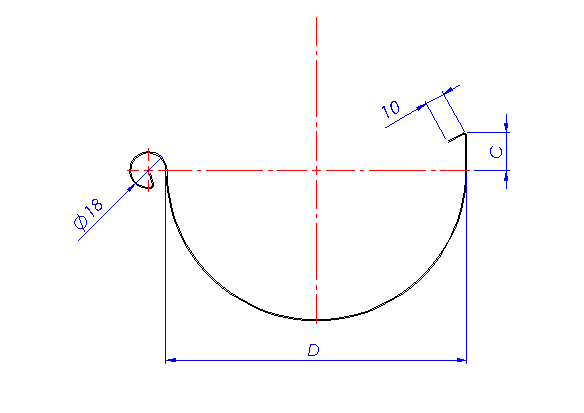

| Diameter (mm) | C (mm) | D (mm) | Cross sectional area in sq.mm | Litres per meter |
|---|---|---|---|---|
| 100 | 20 | 105 | 4239 | 4.24 |
| 125 | 20 | 127 | 6225 | 6.225 |
| 150 | 20 | 153 | 9061 | 9.061 |
| 200 | 20 | 192 | 14311 | 14.312 |
| 250 | 20 | 232 | 20937 | 20.937 |
| 300 | 20 | 296 | 34151 | 34.151 |
| 350 | 20 | 346 | 46714 | 46.714 |
| 400 | 20 | 394 | 60621 | 60.622 |
| 450 | 20 | 448 | 78430 | 78.43 |
