M Pattern
M Pattern Gutter & Fascia

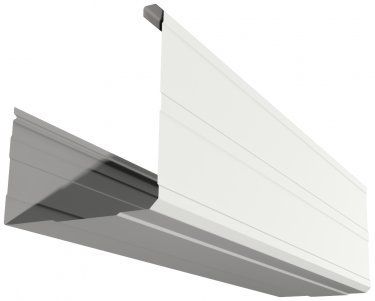

Stramit’s M Pattern Gutter
Stramit's M Pattern gutter is a square-feature gutter with a large drainage capacity, making it ideal for larger homes and commercial applications.
The Stramit M Pattern gutter is easy to install and available slotted to assist with any overflow of stormwater and has good water carrying capacity.
The Stramit M Pattern gutter has good water-carrying capacity and is available in a range of COLORBOND® steel colours.
The Stramit M Pattern gutter is also available in a range of profiles to suit your home or business.

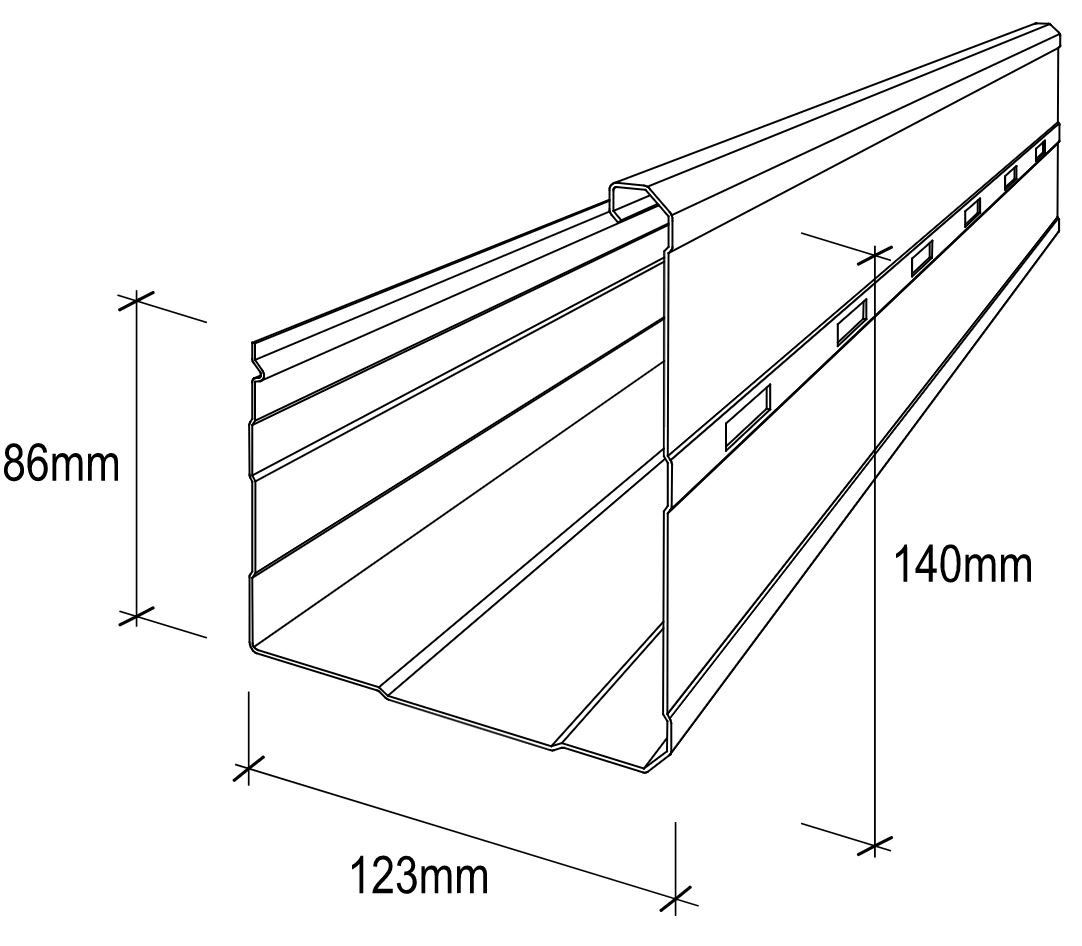

Specifications
Profile: Square Plain & Square Slotted
Width: 123
Height (Front/Back): 140/85
Mass: 1.28 Kg/m
Maximum Bracket Spacings: 1200mm
ECSA: 9100 & 7900mm2
Cut to Length
Min: 0.5m
Max: 9.0m
Gutter Fall: 1 in 500
Accessories
- Concealed Bracket
- Gutter Stiffener
- Stop Ends
- Snap Clip
Colours to Choose from
- Zincalume
- XRW Colorbond
