Architectural Cladding
Standing Seam 25

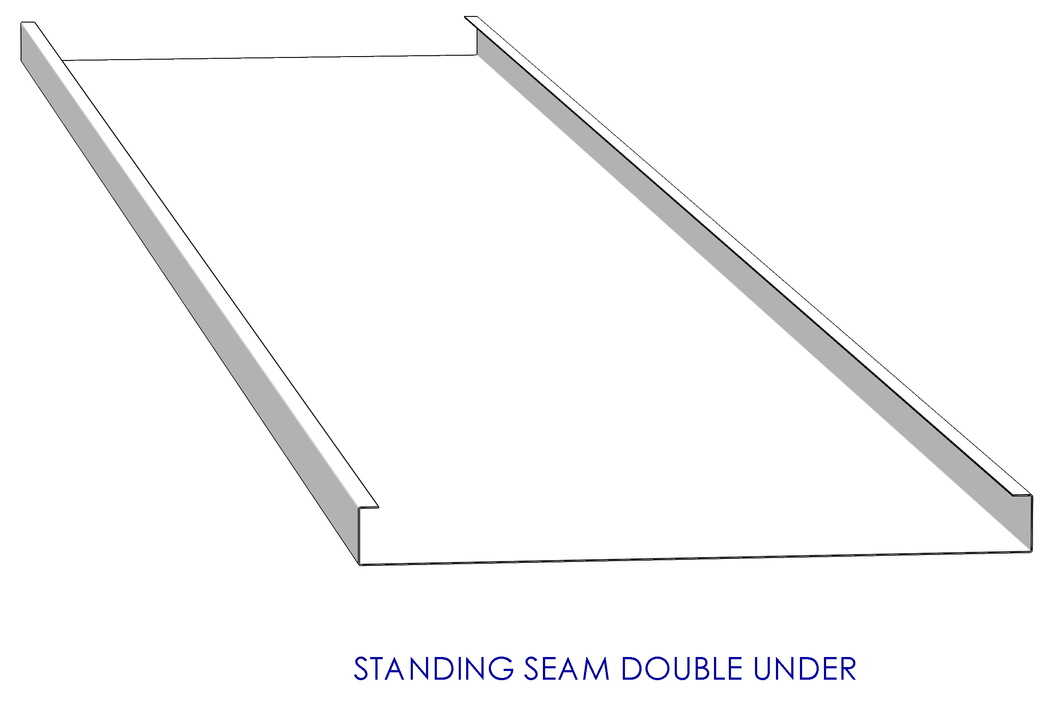

Standing seam is a type of architectural cladding system that features a raised seam that connects two adjacent metal panels together.
This type of panel offers several advantages over traditional roofing systems, including:
- Resistant to harsh weather conditions
- Durability: Standing seam panels are made from high-quality materials, such as PREFA aluminum, steel, or copper, and are designed to last for many years
- Minimal maintenance
- Clean and sleek appearance: The raised seam design eliminates the need for exposed fasteners or clips, providing a clean and seamless appearance
- Design flexibility: Standing seam panels can be custom fabricated to fit any building design or specification, and are available in a range of colors and finishes to match any architectural style
Specifications
Rib Height - 25mm
Applications
- Roofing
- Wall Cladding
All Materials
BMT: Varies per material selected. See specifications below.
Cover:
Varies per material selected. See standard sizes below.
Custom COVER sizes available upon request.
Minimum Pitch: 3 Degrees
Accessories:
- Self-Adhesive Membrane
- Enkamat (Separation & Condensation Layer)
Colorbond - Standard / Metallic / Matt / Ultra
BMT - 0.55mm
Cover - 330mm & 530mm
PREFA Aluminium
BMT - 0.70mm
Cover - 430mm
Curving - Available
Copper
BMT - 0.55mm & 0.70mm
Cover - 330mm, 430mm & 530mm
Curving - Available
Zinc
BMT - 0.55mm & 0.70mm
Cover - 430mm
Curving - Available
Galvanised
BMT - 0.55mm
Cover - 330mm & 530mm
Curving - Available
Zincalume
BMT - 0.55mm
Cover - 330mm & 530mm
Curving - Available
Support
- 17mm Plywood
- Fixed Clips: 25mm
- Fixed Clips: 30mm Used with an Enkamat – Separation Layer
- Sliding Clips: 25mm
- Sliding Clips: 30mm Used with an Enkamat – Separation Layer
Underlay
- Sarking
- Self-Adhesive Waterproof membrane
- Enkamat: Separation & Condensation Layer
MATERIALS & FINISHES
PREFA ALUMINIUM
Note: Colours in stock unless marked with *, colours marked with * are available on special order.
Unpainted Steel
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
Non-ferrous Metals
VM Zinc
