Stramit Curving Quality Corrugated
Curving Quality

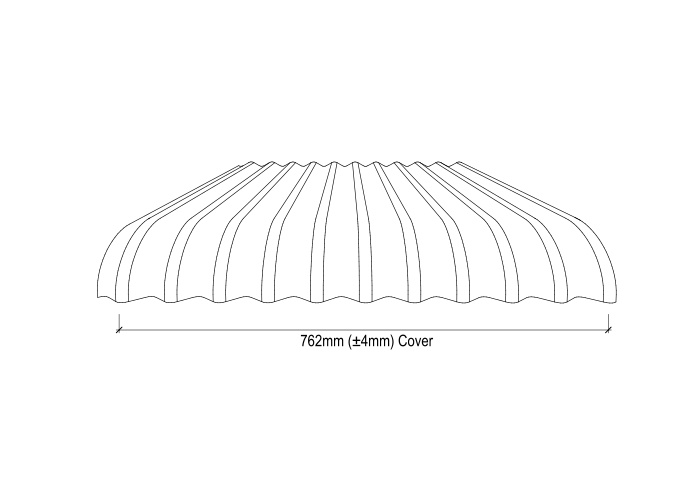

Stramit's Curving Quality is corrugated roofing and wall cladding that expands the versatility of traditional corrugated roofing by increasing design flexibility. Stramit Curving Quality is available in a range of curved shapes with a minimum 500mm radius, custom curved to suit project requirements, and a 5-degree minimum roof pitch to suit most applications. Stramit Corrugated Range offers the designer versatile cladding for roofs and walls in both domestic and commercial applications. When combined with Stramit's wide range of accessories, the possibilities are endless.
Specifications
BMT: 0.60mm

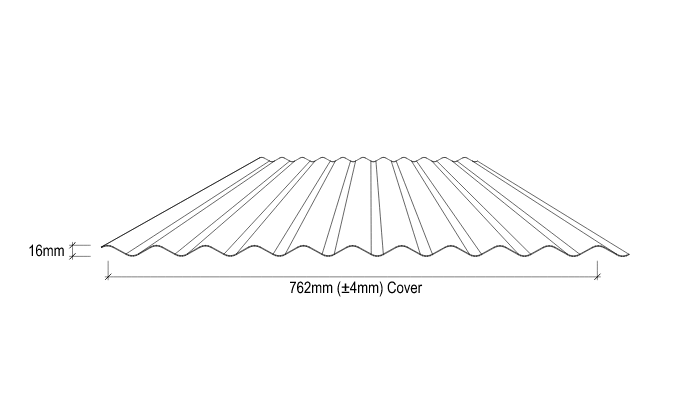

Cover Width: 762mm
Weight: 6.09 Kg/m2
Minimum Pitch: 5°
Roof Span
INT Span: 1200mm
End Span: 1000mm
Wall Span
INT Span: 2700mm
End Span: 2250mm
Rib Height: 16mm
Accessories
- Infill Strips (930mm long)
- Prestite – preformed bitumen sealing strip
- Polycarbonate sheeting to suit corrugated
- Fibreglass sheeting to suit corrugated
- Barge/edge roll
- Spearpoints
- Formtex – curve flashings
Colours You can Choose from
- XRW Colorbond Range
- ULTRA Colorbond Range
- METALLIC Colorbond Range
- Zincalume
- Galvanized
