Underlays

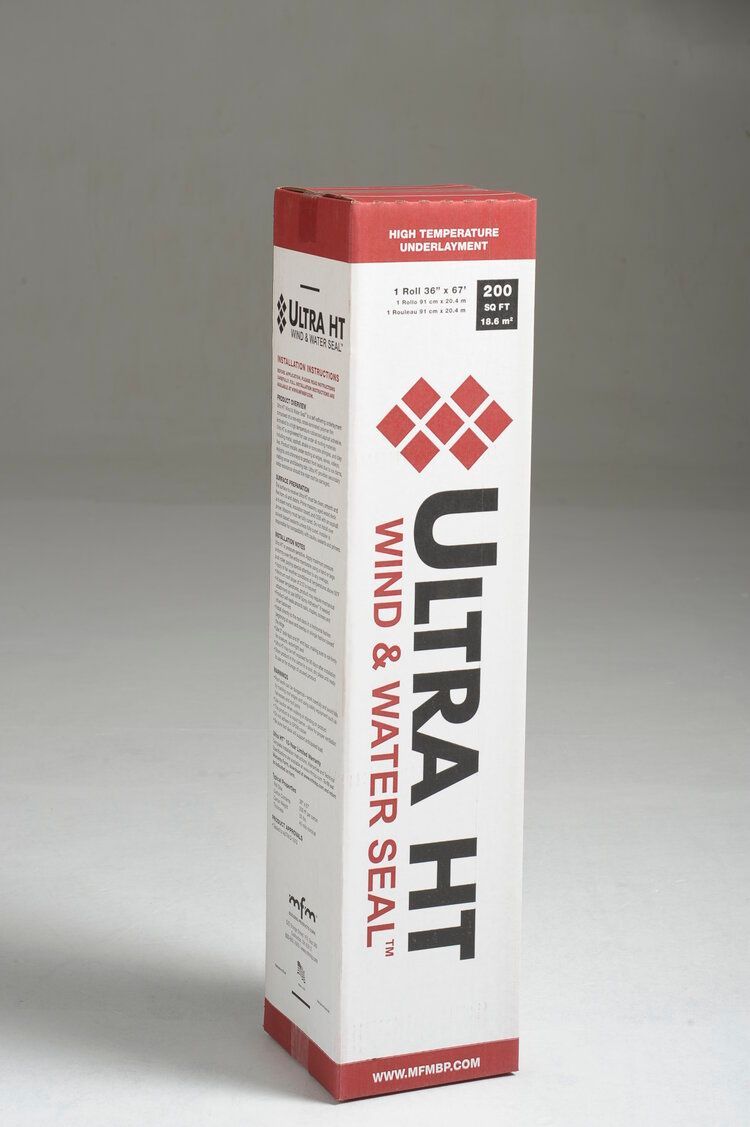

Ultra HT Wind & Water Seal® is a 45 mil, self-adhering roofing underlayment composed of a white, non-slip, cross-laminated polymer film, laminated to a HIGH TEMPERATURE rubberized aggressive asphalt adhesive. Product is engineered for whole roof protection under shingle, tile, shake and metal roofing systems.

Roll size 18.60m2 covering approx. 17 m2 of cladding


Ultra HT Wind & Water Seal® bonds to the substrate and seals around fasteners to limit damage caused by water penetration or leaks. It is ideal for secondary water resistance with proper roof ventilation. Product comes with a split release liner for easy installation in valleys, ridges and around chimneys.


• Rated for High Temperature applications up to 250°F
• Single-ply installation direct to the roof deck surface
• Non-slip polymer surface for excellent foot traction
• High elongation and flexible to accommodate expansion and contraction
• Install in temperatures at or above 50°F
• Seals out water to prevent damage
• Minimum roof slope of 2:12 is required (check local building codes for required roof slope)
• May be exposed for 90 days
• Aggressively adheres to plywood, metal and most building materials
• Suitable for use in vertical applications such as under exterior panel systems and parapet walls

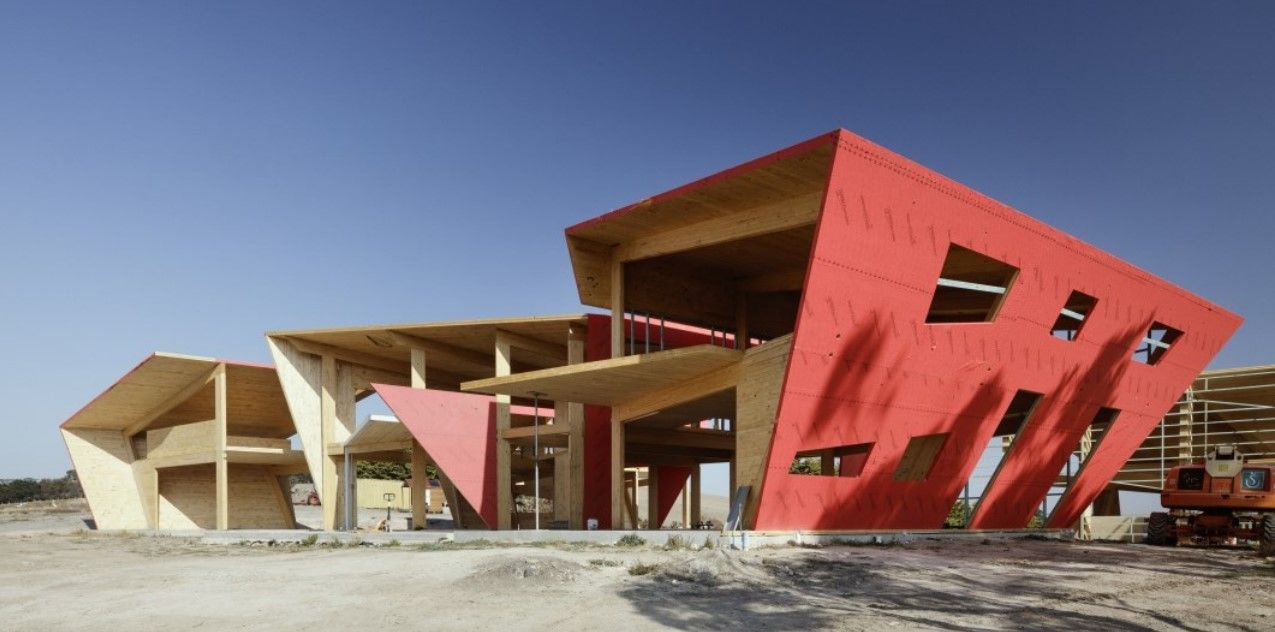

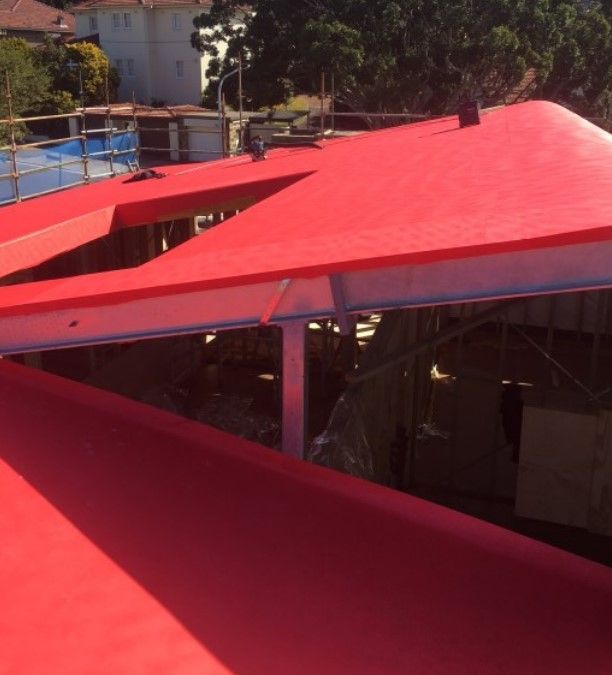

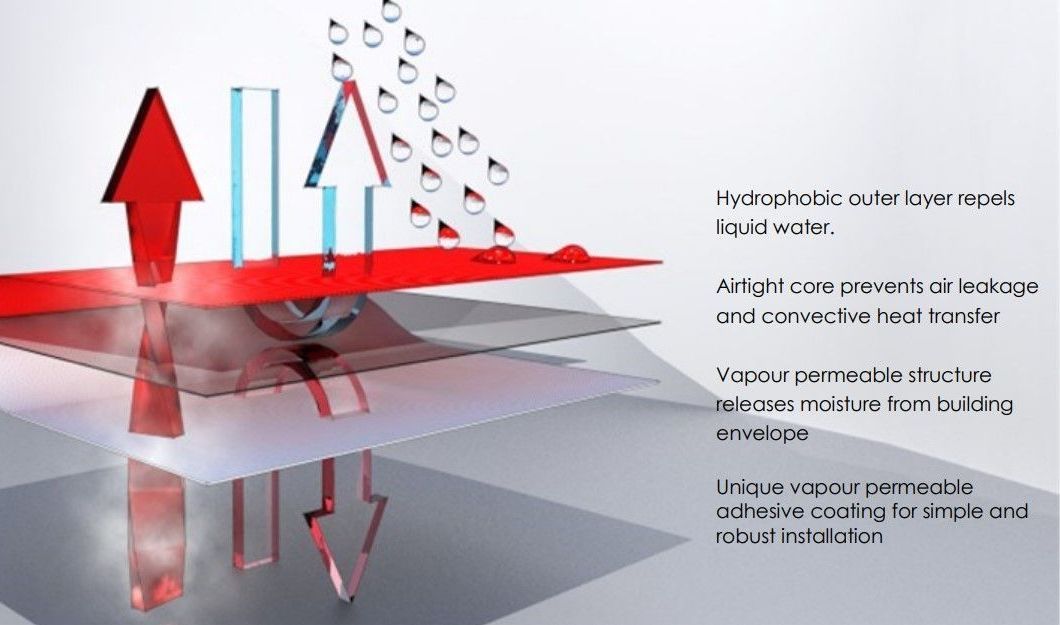

ProctorPassive Wraptite SA combines the best properties of a vapour permeable membrane and a self adhesive water and air barrier in one innovative self-adhering product. Wraptite SA utilizes a patented full coverage air permeable adhesive to provide unsurpassed vapour permeability in a commercial quality, self-adhered, water resistant vapour permeable membrane.



Dimension:

Width: 1,500mm

Length: 50m

Roll Area: 75m²

Benefits

• Exceptional air tightness.

• Adhesive layer does not compromise vapour permeance of carrier.

• High vapour permeance. (AS4200.1 Class 4)

• No primer required on most clean substrates.

• Tough laminate resists punctures and tears.

• Multiple substrate compatibility.

• Wide service temperature range, easily installed in all climates.

• Zero VOCs, and free of any chemicals on the Living Building Challenge Red List.

• AS/NZS 4200.1 testing and compliance

• Initial low tack for adjustability

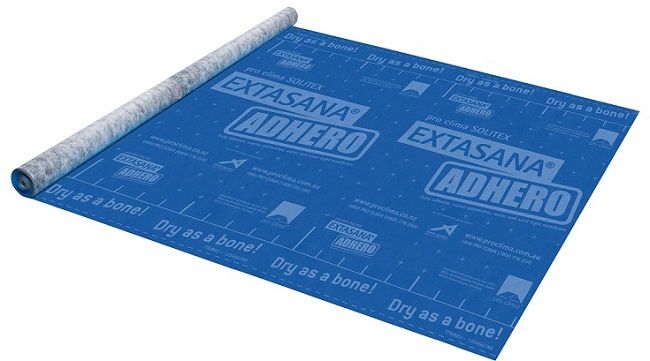

SOLITEX EXTASANA ADHERO® provides the ultimate weather protection layer for your walls and roofs under all conditions. Fully adhered to rigid substrates, SOLITEX EXTASANA ADHERO® provides ultimate protection to the building from wind, driving rain and other external sources of water, whilst allowing any internal moisture to escape through the vapour permeable, non-porous TEEE layer.

Dimension: 1500mm x 30m (45m2/Roll)

• Excellent UV resistance (180 days exposure)
• Highly vapour permeable (Class 4)
• Long-term durability
• Weathertight & airtight weather resistive barrier (WRB)
• Next generation non-porous monolithic technology

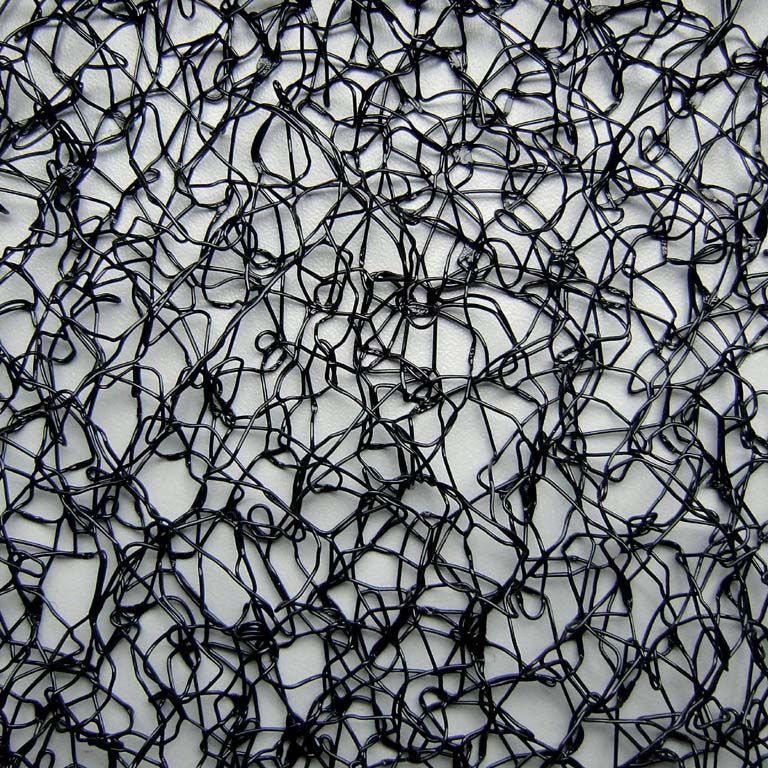

Enka-Vent 7008, installed between the waterproof underslating and the metal sheathing, functions as expansion and ventilation layer. It allows the evaporation of penetrated rainwater and condensation. Enka-Vent avoids capillary water transport between the underslating and the metal sheathing.
Enka-Vent also functions as an “anti-noise layer”, reducing considerably the drumming noise of the rain falling on the metal sheathing.
The installation of Enka-Vent is very easy and efficient.

Dimension: 1000mm x 75m (75m²)

• Allows the evaporation of penetrated rainwater and condensation.
• Enkavent avoids capillary water transport between the underslating and the metal sheathing.
• Noise reduction: 14 dB for drumming noise of rain falling on a metal roof when installed in between the metal sheathing and the underslating; EN ISO 140-6:1998 (tested by WTCB, 2004)
• Easy and efficient installation
