Stramit’s Speed Deck Ultra Roofing & Wall Cladding
STRAMIT SPEED DECK ULTRA®
STRAMIT SPEED DECK ULTRA® Concealed Fixed Decking is a roof and wall cladding which provides excellent durability in almost all locations. It can be expected to outlast through-fixed roofing, with all its fastenings protected beneath the decking.
- Can be used for roofing and wall cladding application
- Some system and span combinations certified to FM Global approval standard FM4471
- Compatible Stramit Farlap® roof lap joint system gives a multiple sheet option for long length concealed fixed roofs
Specifications
BMT: 0.42 – 0.48mm

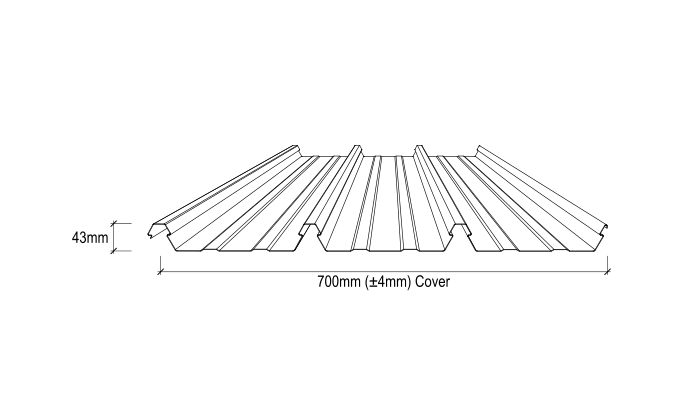

Cover Width: 700
Weight: 4.73 – 5.37 Kg/m2
Minimum Pitch: 1-Degree (1 in 60)
Roof Span
INT Span: 2100 – 4000mm
End Span: 1750 – 3200mm
Wall Span
INT Span: 3000 – 4500mm
End Span: 2500 – 3600mm

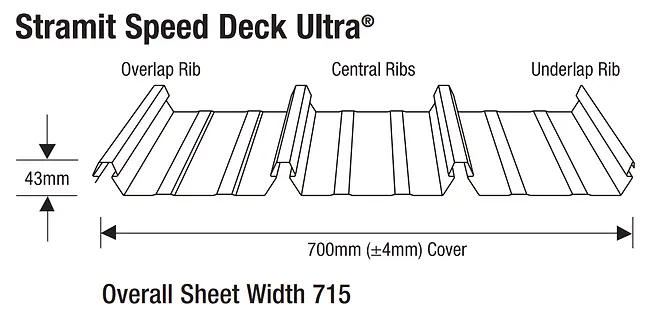

Rib Height: 43mm
Accessories
- Infill Strips Tops (940mm)
- Infill Strips Bottoms (940mm)
- Prestite – preformed bitumen sealing strip
- Fibreglass sheeting to suit Monoclad (5Rib)
- Fixing Clips
- Preloaded Fixing Clips
- Farlap expansion joints for sheeting
- Skylap joint system for fibreglass sheeting
Colours You can Choose from
- XRW Colorbond Range
- ULTRA Colorbond Range
- METALLIC Colorbond Range
- Zincalume
- Galvanized
MATERIALS & FINISHES
Unpainted Steel
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
