Corrugated Roofing & Wall Cladding

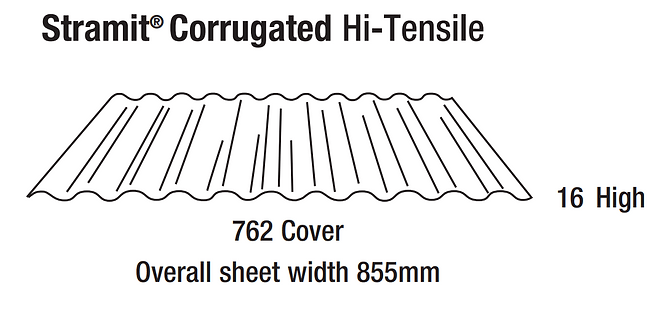

STRAMIT CORRUGATED®
STRAMIT CORRUGATED® is not only the favored roof and wall clading for traditional housing, it is also the first choice for contemporary steel-roofed homes. The most readily curved roofing profile for both spring-curved and bullnosed application.

- Can be used for roofing and wall cladding application
- Low-cost roof and wall cladding available in long lengths
- Conventional through-fix screws maximise performance and installation
- Light weight and high strength

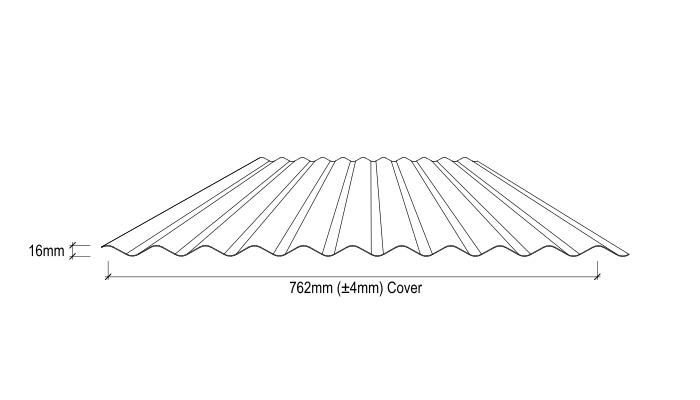

Specifications
BMT: 0.42mm / 0.48mm
Cover Width: 762mm
Weight: 4.35 / 4.93 kg/m2
Minimum Pitch: 5° (1 in 12)
Roof Span
INT Span: 1200 – 1600mm
End Span: 1000 – 1300mm
Wall Span
INT Span: 2600 – 2850mm
End Span: 2150 – 2350mm
Rib Height: 16mm
Accessories
- Infill Strips (930mm long)
- Prestite – preformed bitumen sealing strip
- Polycarbonate sheeting to suit corrugated
- Fibreglass sheeting to suit corrugated
- Barge/edge roll
- Spearpoints
Colours You can Choose from
- XRW Colorbond Range
- ULTRA Colorbond Range
- METALLIC Colorbond Range
- Zincalume
- Galvanized
MATERIALS & FINISHES
Unpainted Steel
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
Non-ferrous Metals
VM Zinc
