Architectural Cladding

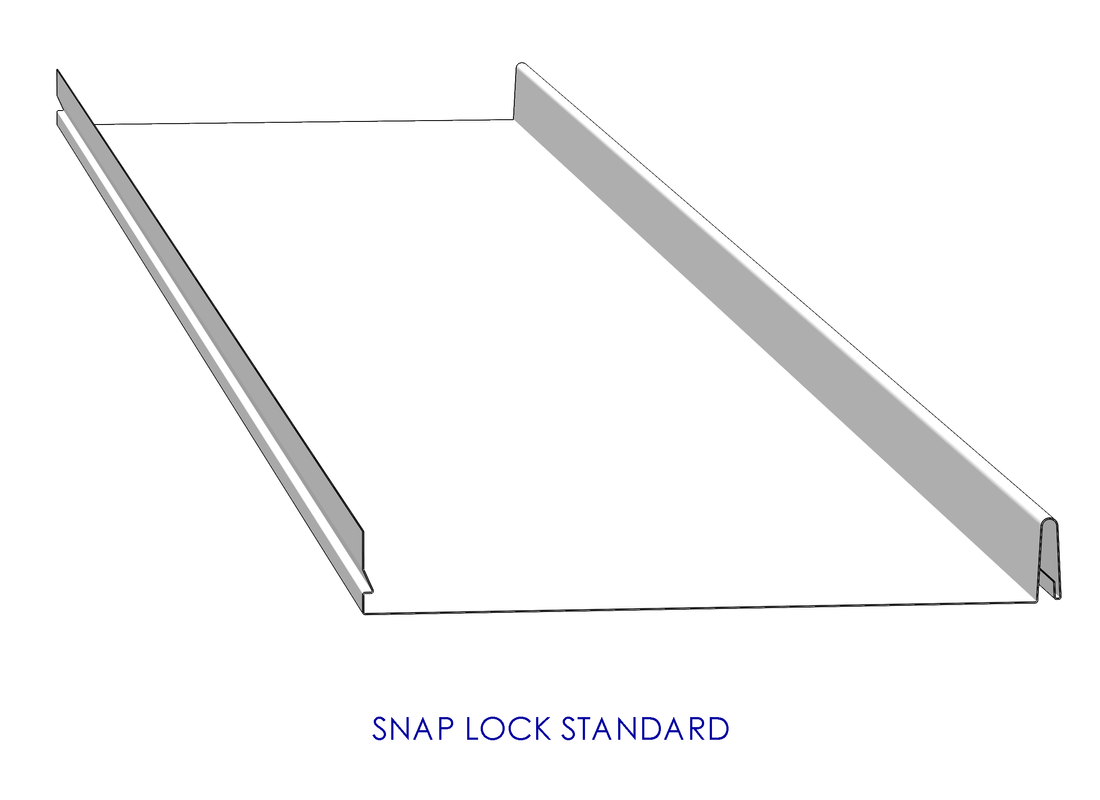

Snap Lock 25 & 38
Snap lock is a type of architectural cladding system suitable for roofing and facades that features a snap-lock design, which allows for quick and easy installation without the need for exposed fasteners or clips.
This type of panel offers several advantages over traditional cladding systems, including:
- Fast and easy installation: Snap lock panels can be installed quickly and easily, saving time and labor costs
- No exposed fasteners: The snap-lock design eliminates the need for exposed fasteners or clips, providing a clean and seamless appearance
- Available in two rib heights, 25mm and 38mm
- Excellent durability: Snap seam panels are made from high-quality materials, such as steel or PREFA aluminum, and are designed to last for many years
- Minimal maintenance
- Design flexibility: Nailstrip panels can be custom fabricated to fit any building design or specification, and are available in a range of colors and finishes to match any architectural style
Specifications
Rib Height - 25mm & 38mm
Applications
- Roofing
- Wall Cladding
All Materials
BMT: Varies per material selected. See specifications below.
Cover:
Varies per material selected. See standard sizes below.
Custom COVER sizes available upon request.
Rib Height: 25 & 38mm
Minimum Pitch: 1.5 Degrees
Accessories:
- Self-Adhesive Membrane
- Enkamat (Separation & Condensation Layer)
- Snap Lock stainless steel clips
- Stainless steel fasteners to suit Snap Lock clips for metal or timber
Colorbond - Standard / Metallic / Matt / Ultra
BMT - 0.55mm
Cover 25mm Rib: 325mm
525mm
Cover 38mm Rib: 285mm
485mm
PREFA Aluminium
BMT - 0.70mm
Cover - 385mm
Copper
BMT - 0.55mm & 0.70mm
Cover 25mm Rib: 325mm
525mm
Cover 38mm Rib: 285mm
485mm
Zinc Mill Finish (VM Zinc / elZinc)
BMT - 0.70mm
Cover 25mm Rib: 425mm
Cover 38mm Rib: 385mm
Galvanised
BMT - 0.55mm
Cover 25mm Rib: 325mm
525mm
Cover 38mm Rib: 285mm
485mm
Support
- 17mm Plywood
- Fixed Clips: 25mm & 38mm
Underlay
- Self-Adhesive Waterproof membrane
- Enkamat: Separation & Condensation Layer
MATERIALS & FINISHES
PREFA ALUMINIUM
Note: Colours in stock unless marked with *, colours marked with * are available on special order.
Unpainted Steel
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
Non-ferrous Metals
VM Zinc
