Stramit’s Longspan Roofing & Wall Cladding
STRAMIT LONGSPAN®
STRAMIT LONGSPAN® is ideal for commercial roof and cladding application. It is a light weight product with wide cover, good water carrying capacity and water-tightness permitting very low roof pitch.
- Can be used for roofing and wall cladding application
- Conventional through-fix screws maximise performance and installation
- Strength and rigidity of the profile allows for economical construction
- Variable fixing screw patterns give design flexibility
Specifications
BMT: 0.42 – 0.48mm
Cover Width: 700
Weight: 4.73 – 5.37 Kg/m2
Minimum Pitch: 1.5 Degrees (1 in 45)
Roof Span
INT Span: 2700mm
End Span: 2250mm
Wall Span
INT Span: 3000mm
End Span: 2500mm

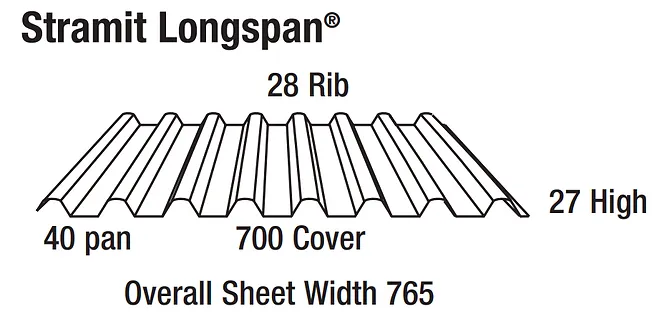

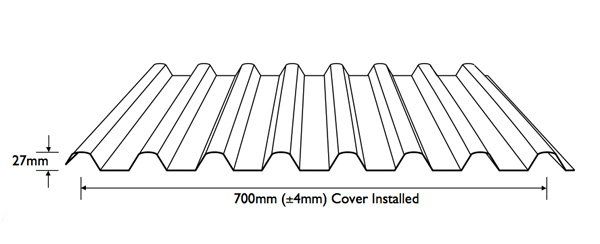

Rib Height: 27mm
Accessories
- Infill Strips Tops (900mm)
- Infill Strips Bottoms (910mm)
- Prestite – preformed bitumen sealing strip
- Polycarbonate sheeting to suit Longspan
- Fibreglass sheeting to suit Longspan
Colours You can Choose from
- XRW Colorbond Range
- ULTRA Colorbond Range
- METALLIC Colorbond Range
- Zincalume
- Galvanized
MATERIALS & FINISHES
Unpainted Steel
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
