Stramit’s Monoclad Roofing & Wall Cladding
STRAMIT MONOCLAD®
STRAMIT MONOCLAD® is a light weight roof and wall cladding with wide cover and weather-resistance. It is ideal for both residential and commercial project.

- Can be used for roofing and wall cladding application
- Through-fixing and easy notching of flashing
- 29mm ribs provide excellent spanning and water-carrying capacity
- Compatible Stramit Monolap® lap joint system allows for single plane, long run roofs

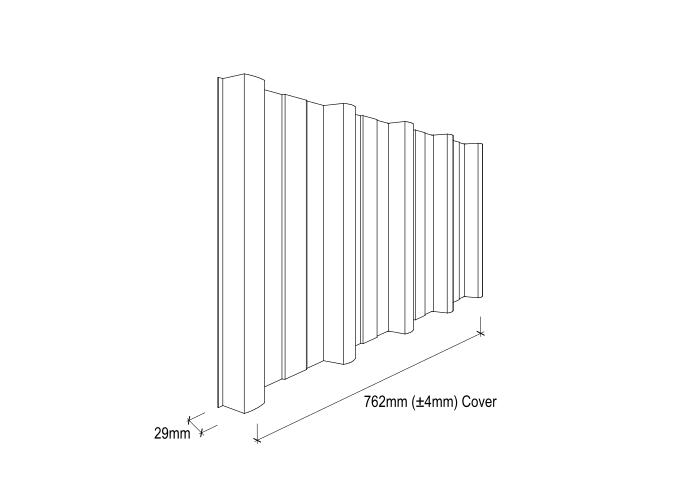

Specifications
BMT: 0.35, 0.42 & 0.48mm
Cover Width: 762
Weight: 3.59, 4.35 & 4.93 Kg/m2
Minimum Pitch: 2-Degrees (1 in 27)
Roof Span
INT Span: 1700 - 2300mm
End Span: 1400 – 1900mm
Wall Span
INT Span: 3000mm
End Span: 2500mm
Rib Height: 29mm
Accessories
- Infill Strips Tops (970mm)
- Infill Strips Bottoms (960mm)
- Prestite – preformed bitumen sealing strip
- Polycarbonate sheeting to suit Monoclad (5Rib)
- Fibreglass sheeting to suit Monoclad (5Rib)
- Monoclad Monolap – roof joining system
Colours You can Choose from
- XRW Colorbond Range
- ULTRA Colorbond Range
- METALLIC Colorbond Range
- Zincalume
- Galvanized
MATERIALS & FINISHES
Unpainted Steel
Colorbond
Colorbond ULTRA
Colorbond Metallic
Colorbond Matt
